Quick Reference Guide (Home screen)

Quick Reference Guide (Home screen)

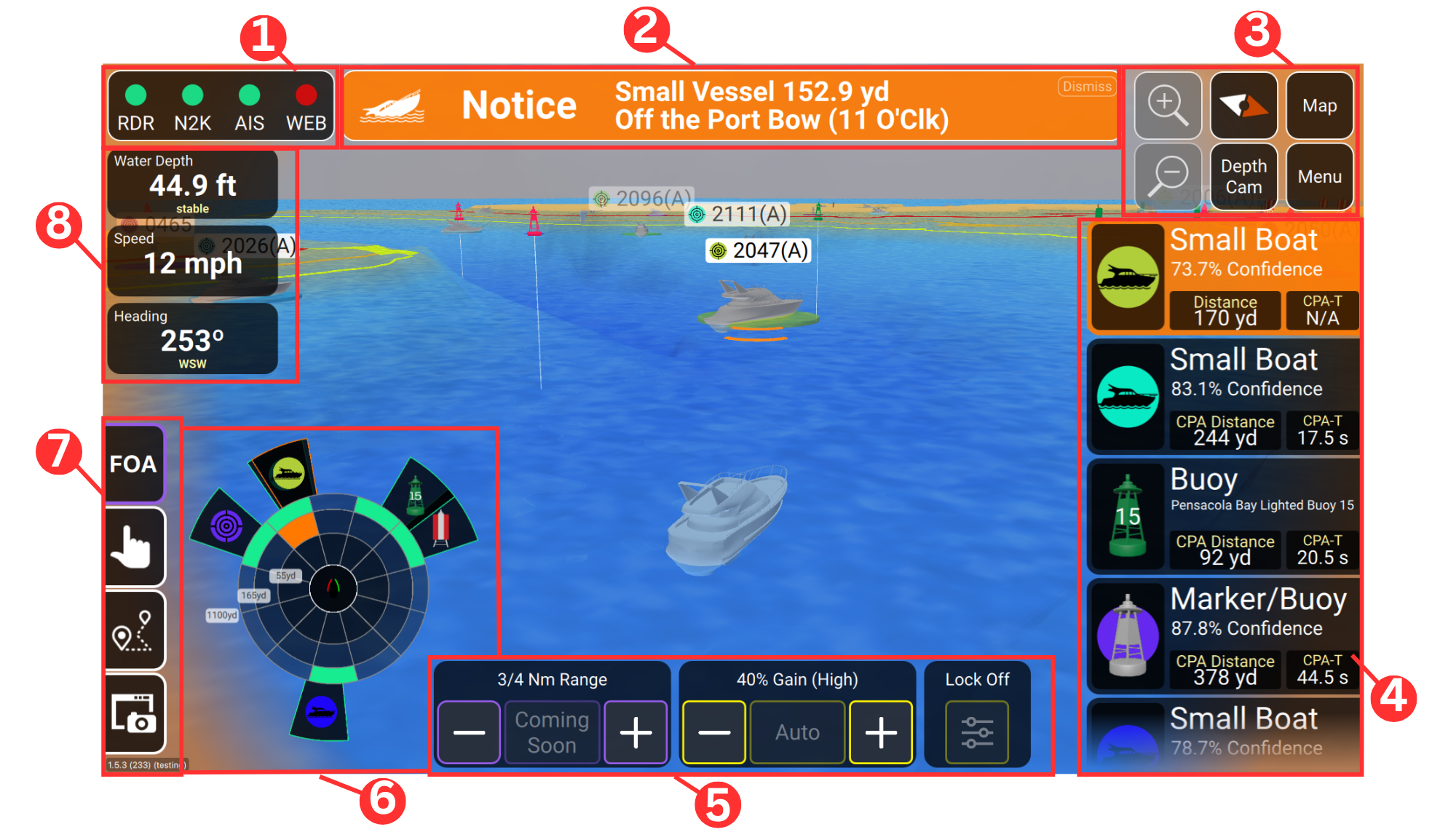

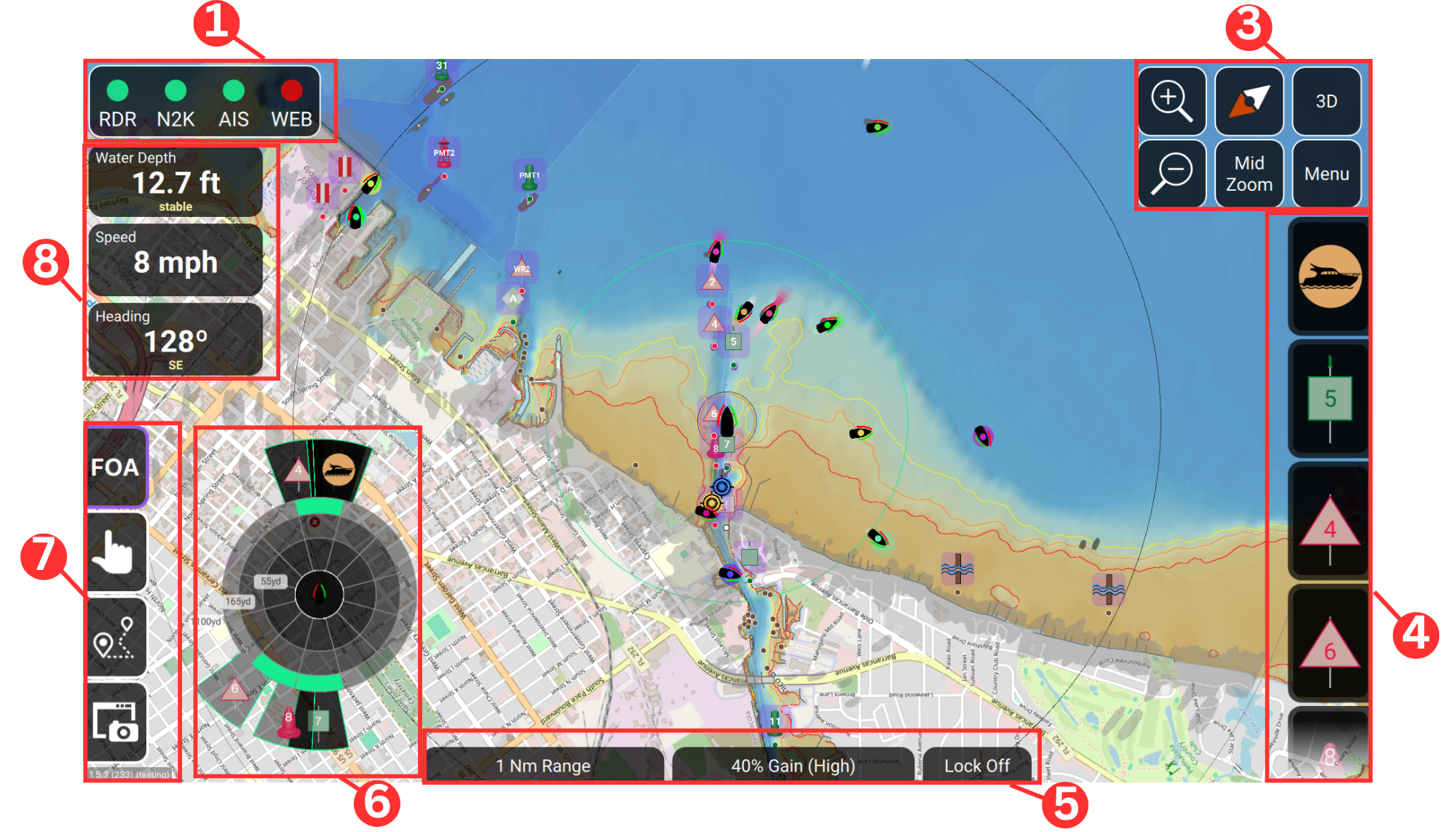

 The two primary modes of the Proteus display are Map (2D) view, and 3D (simulation) view. To switch between these two homes screens, press the “Map” or “3D” button in the top right corner. The following pages describe the features available from the main display.






Display Name
Description
1. Communication Status Bar
  1. RDR - Radar
  2. N2K - NMEA 2000
  3. AIS - AIS Radio
  4. WEB - WIFI/Cellular Connction
Connection Status of the boat systems to your Proteus system
2. Alert Banner
The most immediate threat is displayed here
3. Control Panel
  1. + Button
  2. - Button
  3. Orientation Button
  4. Map/3D
  5. User Zoom
    1. Traditional 2D View
    2. 3D view
  6. Menu
Buttons to control your Proteus
  1. Zoom In
  2. Zoom Out
  3. Switch between North up view or Course View
  4. Switch between traditional Map/2D view and 3D view
  5. Quick Zoom option
    1. Near, Mid, Far
    2. Sky, Deck, Depth
  6. Click to go to Proteus settings and setup
4. Priority Target Panel
Panel of all relevant targets (in order of proximity/threat)
5. Radar Status
  1. NM Range
  2. Gain
  3. Auto Lock
NMB Range, Gain, and Auto Lock
  1. Manually control Radar range levels
  2. Manually control Gain levels for Radar
  3. Lock all range and gain settings
6. Field of Awareness
Clock based orientation of the targets around your boat that also shows how closes they are based on the rings of the circle they populate.
7. Options Bar
  1. FOA Button
  2. Target Information (Hand) Button
  3. Routing Button
  4. Issue (Camera) Button
Features to enhance your on water experience
  1. turn on/off Field of awareness
  2. user ability to get more information on targets
  3. route your trip
  4. alert proteus to targets not classified
8. Vessel Navigation Data
  1. Water Depth
  2. Speed
  3. Heading
Traditional Boat Data
  1. Water depth you are currently traveling in
  2. Current boat speed
  3. Current boat heading
