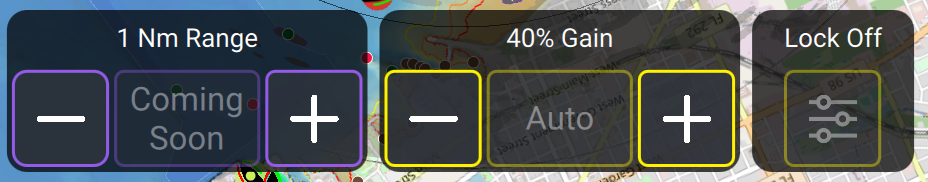

Radar Display (Auto Gain/NM Range)

1. Adjust Gain up (+) or down (-) to meet desired needs on the water.

2. On compatible RADAR hardware, select Auto to have Proteus Auto-Focus manage your RADAR gain.

3. Manually adjust Nautical Mile range up (+) or down (-) or use preset zoom levels in the control panel.

4. Lock on/off locks your settings in place.

1. Note: Adjustments made in this section will affect your OEM display, and vice versa

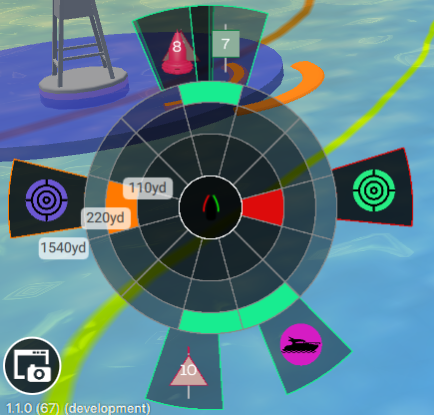

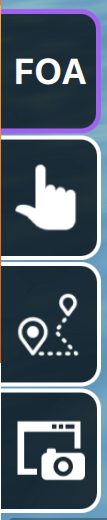

Field of Awareness

1. Green/Outer Circle: This is a notification that there is a boat or object within your set Range Detection Level.

2. Orange/Middle Circle: This is a warning that there is a boat or object within your set Range Detection Level.

3. Red/Inner Circle: This is a threat to your boat by another boat or object within your set Range Detection Level.


Communication Status Bar (RDR, N2K, AIS, WEB) is a quick view of the connection statuses to your Proteus device.

RDR – Radar Connection to your Proteus device

N2K – NMEA2000 Connection to your Proteus device

AIS – AIS VHF Connection to your Proteus device

Web – WIFI Connection to your Proteus Device

Connectivity Status Color Chart

1. Green: Actively receiving data

2. Orange: Has received data since system started, but not currently receiving data

3. Red: Never received data


1. Note: The AIS Radio must be powered on for AIS icon to be Green.  It is not required for Proteus to work, but you will lose the ability to identify boats by their AIS signal including 3D renderings, speed, and direction.  If you do not have an AIS radio this icon will stay Red.

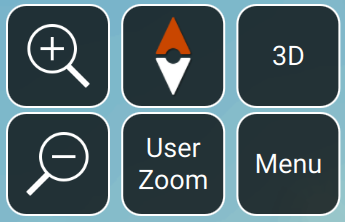

Control Panel is the primary controls for adjusting items, targets, and views on your home screen.

Zoom in using our + or - Buttons.  This is a digital zoom of the screen, it will not affect your Radar's Nautical Mile Range

Compass Heading: Switch the orientation between the screen pointing north up or course up

Map/3D – Switch between Map (Classical 2D) and 3D Views

View Orientation: In Classical 2D switch between preprogrammed zoom levels Near, Mid, and Far.

1. In Classical 2D switch between preprogrammed zoom levels Near, Mid, and Far.

2. In 3D switch between Sky came, Deck cam, and depth cam

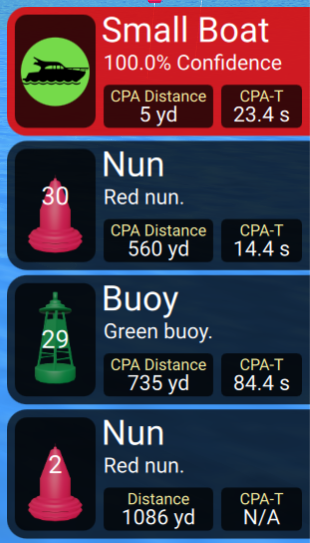

Priority Target Panel

As targets become threats, they will auto populate to the top of the list based on the immediacy of the threat (Pictured Above)

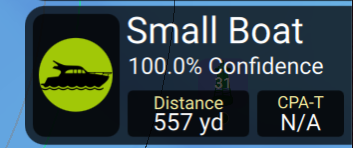

Objects that appear on the display may not be classified right away.  This is a percentage depiction of the system’s confidence level classifying the radar hit.  As Proteus becomes smarter the system will classify the targets quicker.

Proteus will also give you a confidence rating of targets on the water.  The more you are on the water the smarter Proteus gets.

List of objects on the water

Boats

Markers

Buoys

Unidentified Objects

CPA Distance – Closest Point of Approach Distance

CPA – T – Closest Point of Approach Time

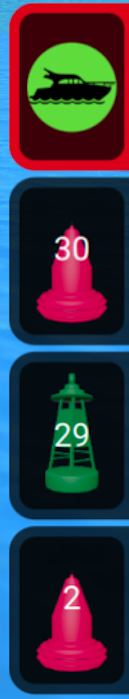

In the Priority Target Display you can touch them and they shrink to a small icon or leave them large to show all relevant information.



1. Note: If the icons are small or large the most immediate threat will always populate to the top in the large icon format

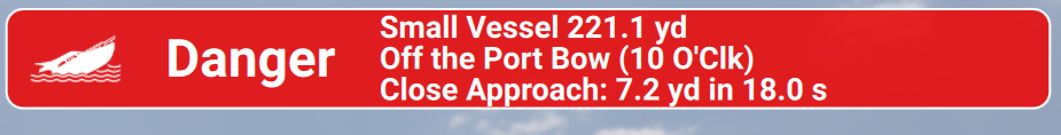

The Alert Banner appears when there are immediate threats above and below water

Severity of Alert:

1. Red (Immediate threat)

2. Orange (Medium threat)

3. Purple (Shallow water threat)

1. Note: the banner will disappear when there is no threat

Distance 221.1 yd: Total distance to your threat

Direction “Off the Port Bow (10 O’Clk)”: Clock direction off the bow of where you threat is located

Close Approach 7.2 yd in 18.0 s:  Distance and Time from your threat

Projected Path (2D View Only)



1. Note: the shorter and wider the path is an indicator that the boat is traveling slower and has more maneuverability.  The longer and narrow projected path indicates that the boat is travleing at a high speed and has less maneuverability.

Targets are colored coordinated between the object on the water, Field of Awareness, and Priority Target panel.
